For a typical 15–25 m residential lateral in Canada, cured-in-place pipe (CIPP) lining usually quotes about $9,000 to $28,000 CAD and pipe bursting about $10,000 to $30,000 in 2026. Lining is usually cheaper when the pipe is intact and has several branch connections; bursting wins when the pipe is broken, undersized or partly collapsed on a straight run.
- Lining builds a new pipe inside the old one; bursting destroys the old pipe and pulls a new one through the same path.
- Lining needs a pipe that is continuous enough to pass the liner; bursting needs two access pits and a reasonably straight route.
- Neither method fixes a sag reliably — a belly holding water still needs an open-cut dig at that spot.
- Compare trenchless quotes on setup, per-metre rate, number of pits and number of reinstated connections.
01 /What is the cost difference between lining and bursting?
On a straightforward residential lateral the two methods land in overlapping price bands. The difference in any given quote comes from how many access pits bursting needs, how many connections lining must reopen, and the length of the run.
| Item | CIPP lining | Pipe bursting |
|---|---|---|
| Typical total, 15–25 m lateral | $9,000–$28,000 | $10,000–$30,000 |
| Per metre after setup | $500–$1,200 | $550–$1,300 |
| Access pits | Often none if cleanouts exist; 1 if not | Usually 2 (launch and receiving), more for bends |
| Cost per pit | $1,500–$4,500 | $1,500–$6,000 |
| Reinstating a branch connection | $300–$1,200 each (robotic cutter) | Pit or fitting at each connection |
| Pre-cleaning and descaling | $400–$2,500 (required) | Less critical |
| Pre- and post-work camera | Should be included | Should be included |
02 /How do lining and bursting work?

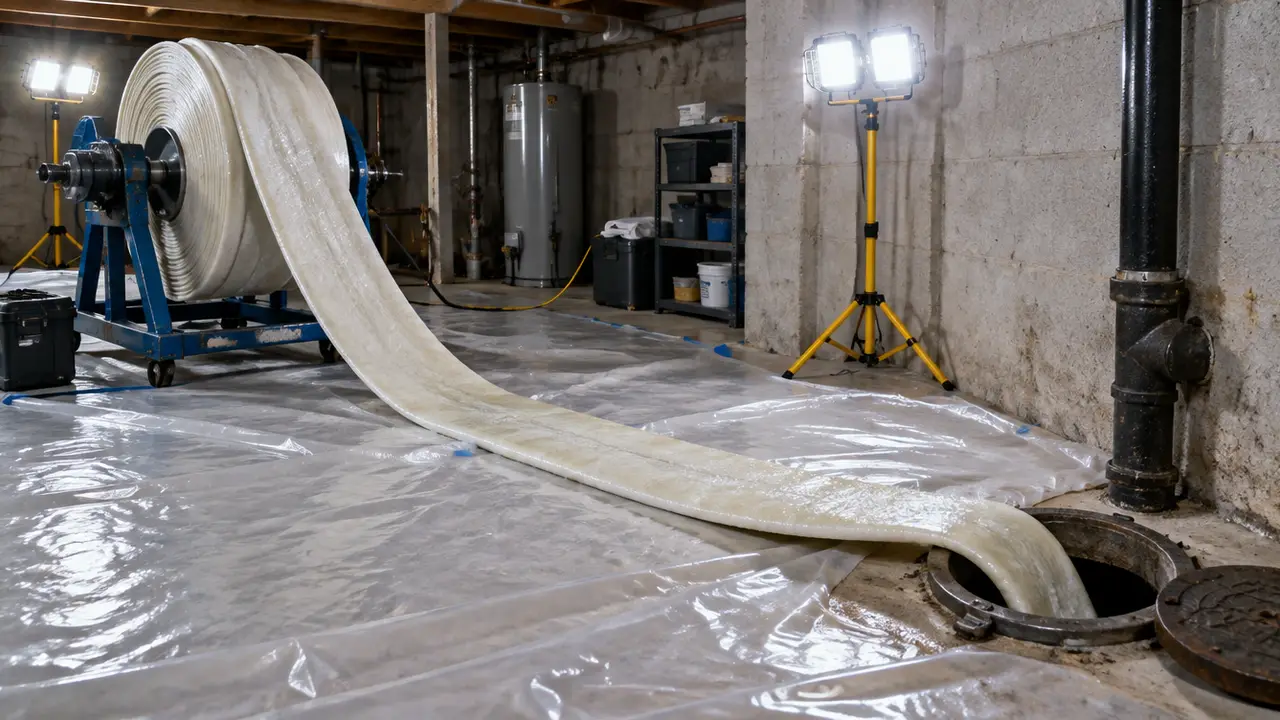

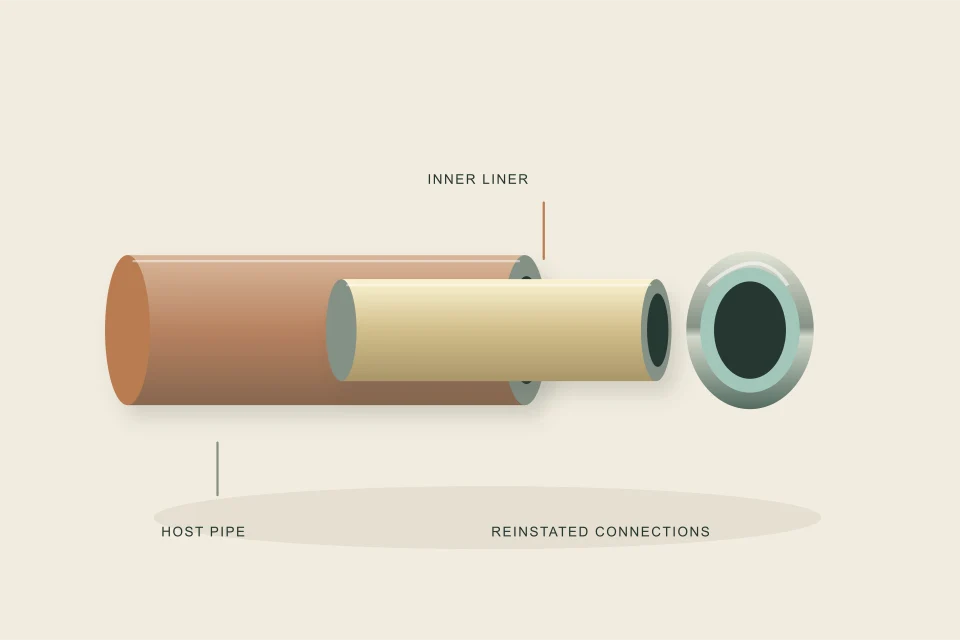

Cured-in-place pipe (CIPP) lining inserts a flexible tube saturated with resin (usually epoxy for residential work) into the cleaned host pipe, inflates it against the wall, and cures it with hot water, steam, ambient time or UV light. The result is a jointless pipe inside the old one.

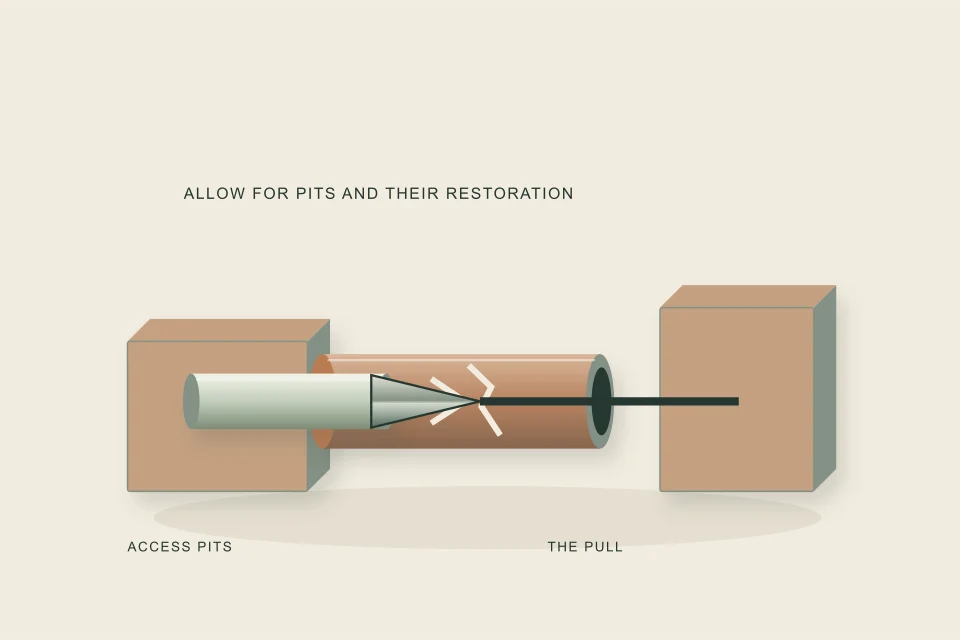

Pipe bursting pulls a bursting head through the old pipe from one pit to another. The head fractures the old pipe outward into the soil while pulling a new pipe — usually high-density polyethylene (HDPE) joined by fusion welding — into its place. The new pipe can be the same size or one size larger.
Each method has its own cost structure, covered in depth in sewer pipe lining cost and pipe bursting cost.
03 /Which method fits my pipe?
Your camera footage decides the method before price does. Use this table as a first filter, then ask each contractor to explain their choice against the video.
| Condition on camera | CIPP lining | Pipe bursting |
|---|---|---|
| Cracks, fractures, leaking joints | Strong fit | Fit |
| Root intrusion at joints | Strong fit (after cleaning) | Fit |
| Small offsets | Fit if liner can pass | Fit |
| Large offsets or partial collapse | Poor — may need a dig first | Often fit |
| Full collapse | No | Sometimes, depending on soil |
| Belly or sag | No — liner follows the sag | Limited — new pipe follows old path |
| Undersized pipe | No — slightly reduces diameter | Yes — can upsize |
| Several branch connections | Good — robotic reinstatement | Costlier — pits at connections |
| Many bends | Good for gentle bends | Poor — pits at each significant bend |
| Nearby gas or water lines close to the pipe | Low risk | Needs clearance; bursting displaces soil |

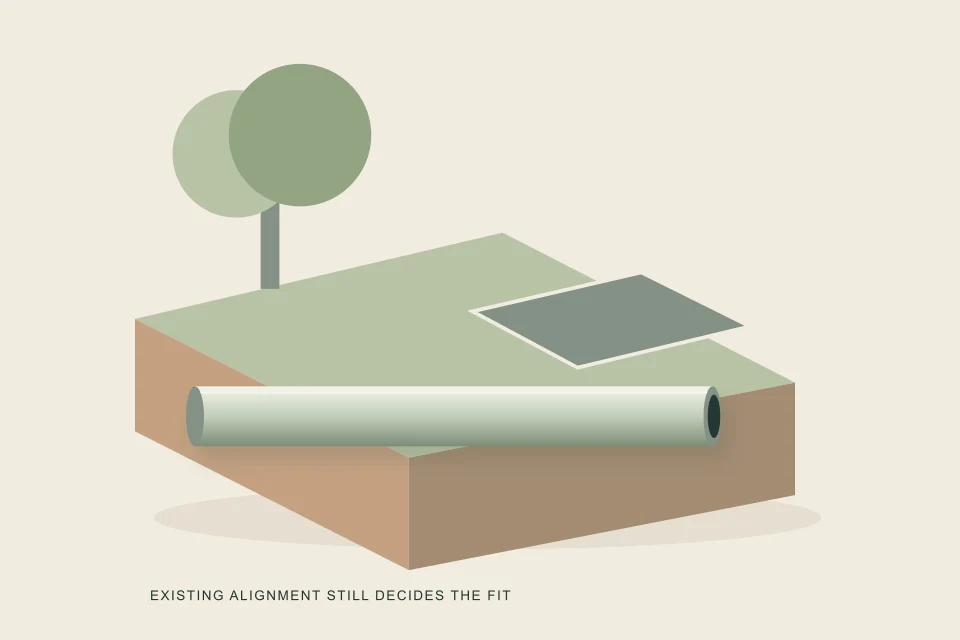

Decision rule: if the pipe is continuous and has side connections, start with lining quotes. If it is broken, undersized or collapsing on a mostly straight run, start with bursting quotes. If it has a sag, budget for an open-cut section regardless — see sewer line replacement cost. For lifespan, warranties and the cases where neither method is worth it, read is trenchless sewer repair worth it.
04 /What should a trenchless quote include?
Trenchless quotes are easier to compare than open-cut quotes because restoration is smaller, but the line items are less familiar. Check that each of these is present and specified.
- Liner or pipe specification — resin type and liner thickness for CIPP; HDPE dimension ratio (for example DR 17) and diameter for bursting.
- Pre-cleaning scope — lining fails if roots, grease or scale are left in the host pipe.
- Access plan — how many pits, where, and what surface is restored above each.
- Connections — how many branch lines will be reinstated and how.
- Transition fittings — how the new pipe connects to the house plumbing and the city side.
- Cure method and no-use period — how long you cannot run water.
- Post-work video — recorded footage of the full new pipe, showing no wrinkles, gaps or blocked connections.
- Warranty — its length, what it covers (liner, workmanship, connections) and who stands behind it.
05 /What makes trenchless jobs cost more?
| Driver | Effect | Applies most to |
|---|---|---|
| No existing cleanout | Adds an access pit | Both |
| Deep pits (over 2.5 m) | Adds shoring, time | Bursting |
| Many connections | Adds reinstatement or pits | Both, more so bursting |
| Heavy scale or roots | Adds pre-cleaning passes | Lining |
| Bends over 45 degrees | Adds pits or specialist liner | Both |
| City-side tie-in | Adds road or boulevard work | Both |
| Cold weather | Longer cure, heated pits | Lining cure, bursting pits |
Trenchless is not automatically the premium choice. On a line under a concrete driveway, a lining quote at $14,000 can be cheaper in total than an open-cut quote at $11,000 plus $6,000 of concrete replacement.
| Cost element | Open-cut | CIPP lining | Pipe bursting |
|---|---|---|---|
| Setup and mobilisation | $1,000 | $1,500 | $1,500 |
| Excavation or pits | $9,000 | $0 (existing cleanouts) | $5,000 (2 pits) |
| Pipe or liner, installed | $3,500 | $11,000 | $8,500 |
| Driveway and landscape restoration | $7,000 | $0 | $1,500 |
| Permit and post-work video | $500 | $500 | $500 |
| Illustrative total | $21,000 | $13,000 | $17,000 |
Change one assumption — say, the line runs under lawn instead of concrete — and open-cut restoration drops to under $1,000, putting open-cut back in contention. That sensitivity is why every trenchless-versus-dig decision should be priced for your specific surface, not decided by rule of thumb. Ask every contractor to state restoration as its own priced line so you can run the same comparison with real numbers.
06 /How to compare a lining quote with a bursting quote
- Normalise the scope
Make sure both quotes start and end at the same points and include the same connections and cleanout.
- Separate fixed from variable
Setup, pits and reinstatements are fixed costs; per-metre is variable. A long run favours the method with the lower per-metre rate.
- Check the end diameter
Lining reduces diameter slightly; bursting can upsize. For a 100 mm (4 inch) lateral in a single-family home this rarely matters; for an undersized line it can.
- Add restoration
Price surface restoration above every pit in each quote.
- Run both through the estimator
Use the sewer cost estimator with each method selected to see where each quote sits in its range.
Then request quotes that ask each contractor to price the method they recommend and one alternative, with reasons. Our quote comparison guide gives a worksheet format, and the quote comparison worksheet lines up the inclusions and warns you when the methods differ.
FAQQuestions people ask
Is pipe lining cheaper than pipe bursting?
Often, but not always. Lining usually wins when the pipe is intact and has several branch connections. Bursting can be cheaper on a straight, broken or undersized line where only two pits are needed.
How long does a CIPP liner last?
Manufacturers and contractors commonly cite design lives measured in decades for properly installed liners, but real performance depends on installation quality, resin, host pipe condition and use. Ask for the warranty terms in writing rather than relying on a quoted lifespan.
Can trenchless methods fix a sagging sewer line?
Not reliably. A liner follows the existing sag, and a burst pipe follows the old path. A belly that holds water usually needs an open-cut dig to re-lay the pipe on grade.
Is pipe bursting safe near my foundation and other utilities?
Bursting pushes fragments outward into the soil, so contractors need adequate clearance from gas, water and electrical lines and from foundations. Utility locates and a clearance plan should be part of the quote.
Do I need a permit for trenchless sewer work?
Many municipalities require a plumbing permit for sewer lateral replacement or rehabilitation regardless of method. Requirements vary, so confirm with your municipality and ask the contractor who pulls the permit.
Is lining an option for Orangeburg pipe?
Orangeburg often deforms rather than cracking, which can stop a liner passing or leave it misshapen. Many contractors prefer bursting or replacement for Orangeburg. Ask the contractor to justify their method against the footage.
